Model 2220
Model 2220
Model 2220
keyboard_arrow_rightkeyboard_arrow_left

Model 2220

$449.00

You've been looking for a rugged monoblock, at home with both music and movies.  Maybe you've been looking for an amp that can be stacked and runs as cool as the other side of your pillow; look no further.

     200W into an 8Ω load / 300W into a 4Ω load
     Choose the right number of amps for your situation
     Accurate Reproduction with Plenty of Headroom

Designed by salt of the earth people hell bent on producing exceptionally built gear that works better than it costs. If it doesn’t beat the big brands in quality-to-value, it doesn’t get the Outlaw badge.

MANUAL

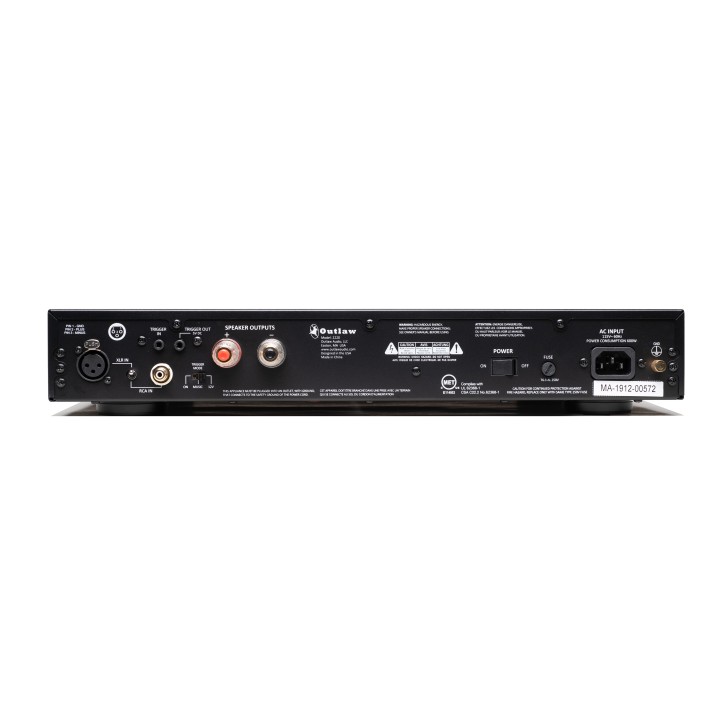

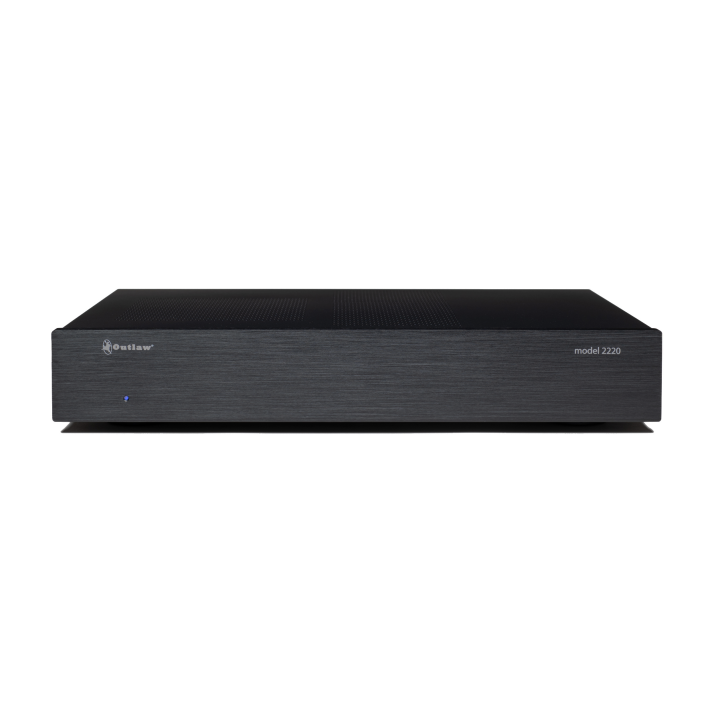

button_magnify.gifSee Front Panel Huge button_magnify.gifSee Rear Panel Huge
Quantity :
Write your review

EU3234363840424446USXX5XSSMLXLXXLXXLArm Length6161,56262,56363,56464,5Bust Circumference8084889296101106111Waist Girth6165697377828792Hip Circumference87919599103108113118

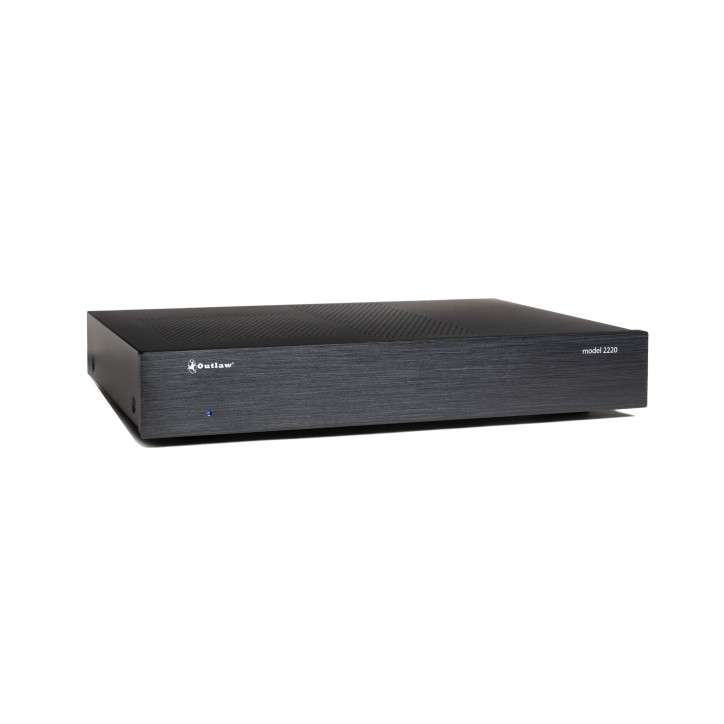

    A stalwart monoblock from Outlaw, the Model 2220 is crafted with two guiding stars: solid performance and simplicity. At a modest 1.75RU, this stackable monoblock amp delivers a potent 200W of clean power into an 8Ω load, and a formidable 300 watts into 4Ω at 0.05% total harmonic distortion. Performance-wise, the Model 2220 offers sound as true and clear as a prairie sky.

    Its advanced input stage features Common-Mode Rejection (CMR), setting it a cut above those who simply add an XLR connector for marketing.

    Both elegant and understated, these single channel amps pack a surprising punch! Clean, accurate audio reproduction makes them trusty for both two channel or home theater. In fact, many an' Outlaw have considered these their own personal first aid kit for anemic AVRs with pre-outs; simply purchase a monoblock for your left, center, and right speakers to bring them back to life.

    Powered by a robust, pancake-style toroidal transformer, it provides ample dynamics while running cool as a desert breeze. The Model 2220 is compact, sleek, and as powerful as a stallion.

    Data sheet

    Crosstalk
    N/A
    Frequency Response
    20Hz -20kHz +/- 0.6 dB at rated output
    Input Impedance
    XLR: 18k; RCA: Less than 10k
    Input Sensitivity
    1.6V 8ohm load/ 1.4V 4 ohm load
    Intermodulation Distortion
    Less than .004%
    Signal to Noise
    112dB A-Weighted
    Rated Amplifier Power
    200 Watts RMS into an 8 ohm load from 20Hz - 20kHz with .05% total harmonic distortion (A-Weighted).
    300 Watts RMS into a 4 ohm load from 20Hz - 20kHz with .05% total harmonic distortion (A-Weighted).
    Dimensions
    3” x 17.125” x 13.125” (HxWxD)
