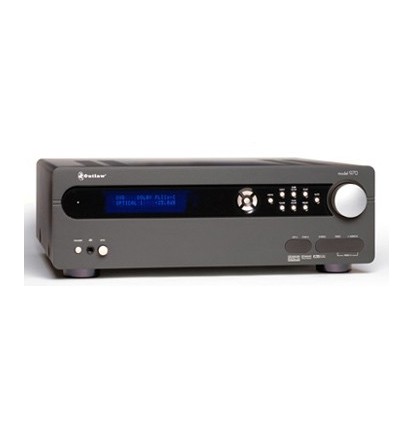

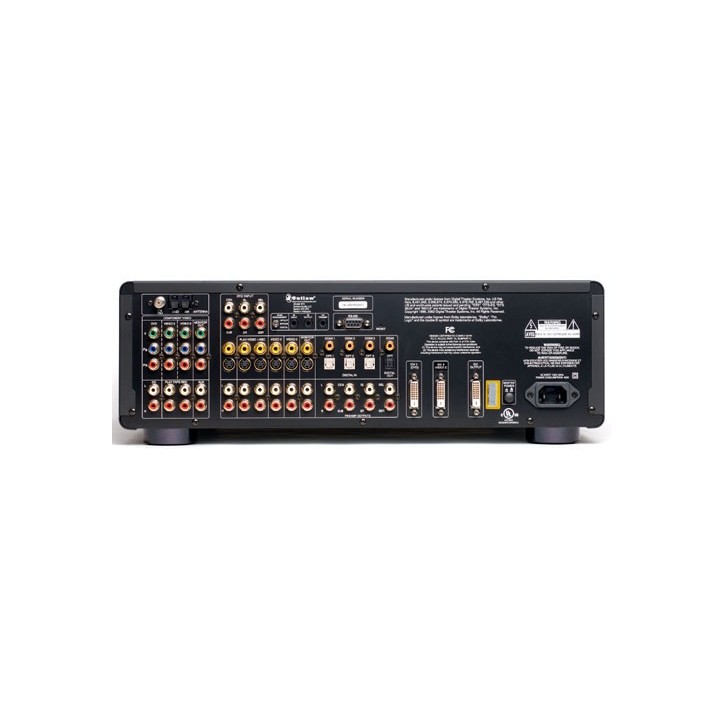

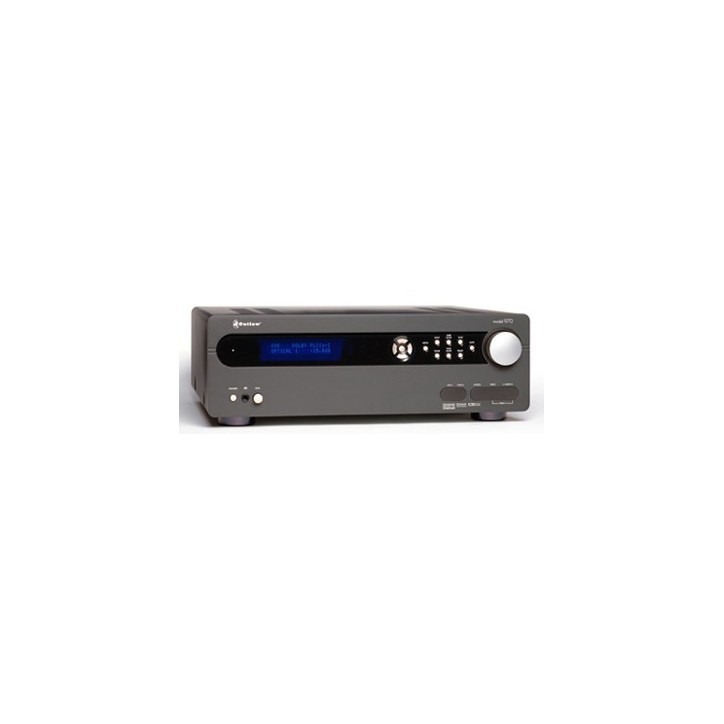

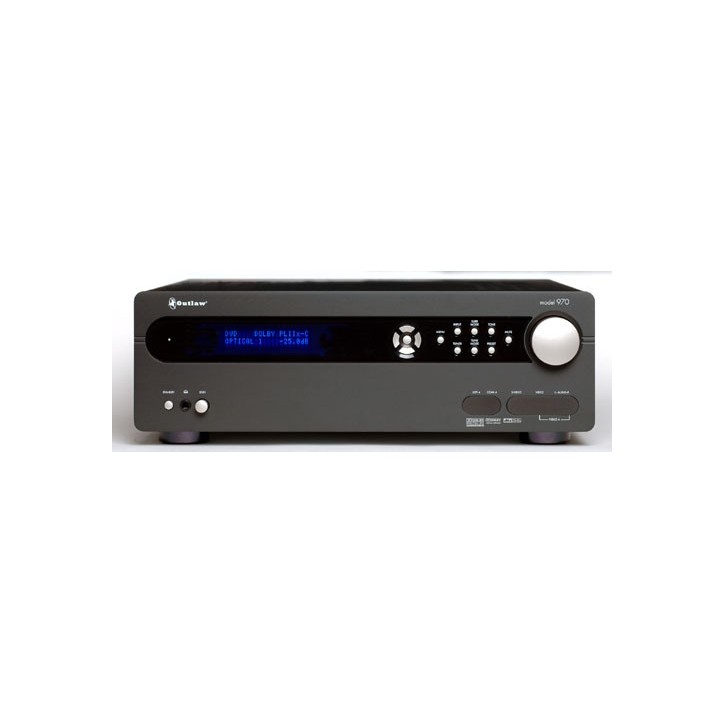

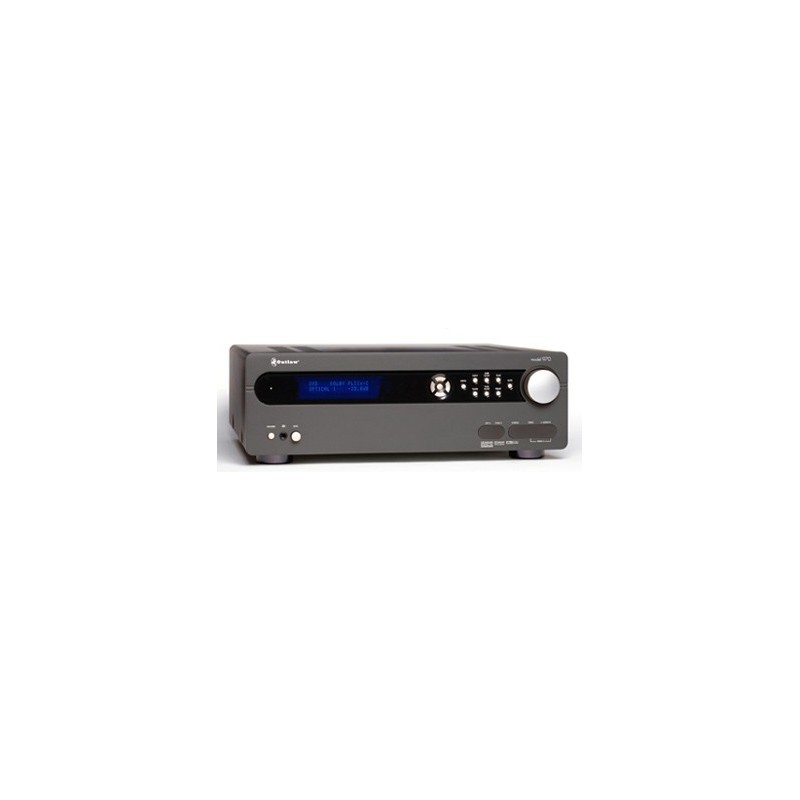

Model 970 7.1 Surround Processor: Discontinued

Model 970 7.1 Surround Processor: Discontinued

Review (0)

Quantity :

The Model 970 is a 7.1 surround processor with Dolby Digital EX, Pro Logic IIx, DTS-ES, DTS-96/24 and NEO:6 decoding, 192 kHz/24-bit DACs on all channels, analog bypass for all inputs and video transcoding.

Free shippingOn orders over $500 (lower 48 states)
30-day money-back trial
Ships within 5 business daysVia ground shipping

This product is discontinued. This page is kept as an archive for owners, with the original product information, specifications and manual. For current models, see Preamps & Processors.

Overview

• Dolby Digital EX, Dolby Pro Logic IIx fully adjustable, Dolby Virtual Speaker, Dolby Headphone
• DTS-ES Discrete and Matrix, DTS-96/24, DTS NEO-6
• 192 kHz 24-bit DAC's for all channels
• Performance Matched Op Amps in the Critical Path
• Analog Bypass mode for all inputs
• Quadruple Crossover Control (Separate settings for Front L/R, Center, Surround L/R, Surround Back L/R)
• Upgradeable via RS-232
• Transcoding between composite, S-Video and Component Video Inputs
• 4 Optical and 4 Coaxial Digital Inputs
• Optical and Coaxial Digital Output
• Lip Synch Delay
• On Screen Display (via composite, S-Video and Component)
• 32-Bit CS-49400 Crystal Processor
• 7.1 channel direct input with full digital bass management, analog bass management and pure by-pass
• 2-channel subwoofer offset
• 7.1 RCA pre-amp outputs
• High performance tuner
• Direct access station tuning via remote control
• 30 Station Presets
• IR control with 1 inputs and 1 output
• 2 Video Record Out Selectors
• 12-Volt Trigger
• 3 HD capable Component Video Inputs
• 2 DVI Inputs 1 DVI Output
• 5 Audio/Video Inputs
• 4 Audio Inputs
• Channel Level Memory
• Sleep Timer
• Aluminum Front Panel

Specifications

Analog Section
Input Impedance 26Kohms
Output Impedance (Main-RCA)<600Ohms
Pre Out 1V
Maximum Output 6V
Volume Range (Main) -70dB to +10.0dB (.5dB resolution)
Bass Management
High-Pass Slope Crossover Frequency
(Small Speaker Setting) (Adjustable 40/60/80/100/120/150Hz)
12 dB/octave (2nd order)
Low-Pass Slope (Subwoofer) 24 dB/octave (4th order), 40-150Hz as above
Tone Control
Bass Center Frequency/Range 30Hz ± 6dB
Treble Center Frequency/Range 10KHz ± 6db
Frequency Response
Line 10Hz to 100kHz ± 1dB
S/N Ratio (IHF-A) 101dB
IMD (CCIF at 15kHz & 1 kHz) 0.03%
FM Tuner Section
Sensitivity
IHF 10dBu typ.
50dB S/N 13dBu typ.
S/N Ratio
Mono 70dB
Stereo 67dB
Distortion
Mono 0.2%
Stereo 0.3%
Stereo Separation 40dB typ.
Adjacent Channel Selectivity 70dB +/- 400kHz
IF Rejection Ratio 120dB
Frequency Response 20 Hz to 15 kHz ± 1.5dB
AM Tuner Section
Sensitivity (20dB S/N) 200uV
S/N 50dB
Selectivity 25dB
Distortion 0.7%
Video Section
(NTSC Format)
Bandwidth
Composite & S-Video 6 MHz –3dB
Component >100MHz
Input Sensitivity @ 75 ohms;
Composite & S-Video 1.0Vp-p
Component R-Y Signal 1.0Vp-p
Component B-Y Signal 1.0Vp-p
Component Y Signal 1.0Vp-p
Digital Audio
All digital audio inputs and outputs are to S/PDIF electrical (75 ohms , 0.5Vp-p),
S/PDIF optical (Toslink), or AES / EBU (110 ohms , 5Vp-p) standards as appropriate.
Processor CS49400
General
Supply Voltage 120V, 60Hz only
Power Consumption
Standby Power Off : 1.9W
Trigger Output Sequential Delay 50 mA @ 12 VDC
Dimensions
(HxWxD) 5.9”x17.2”x15.5”
Weight 20 lbs.
