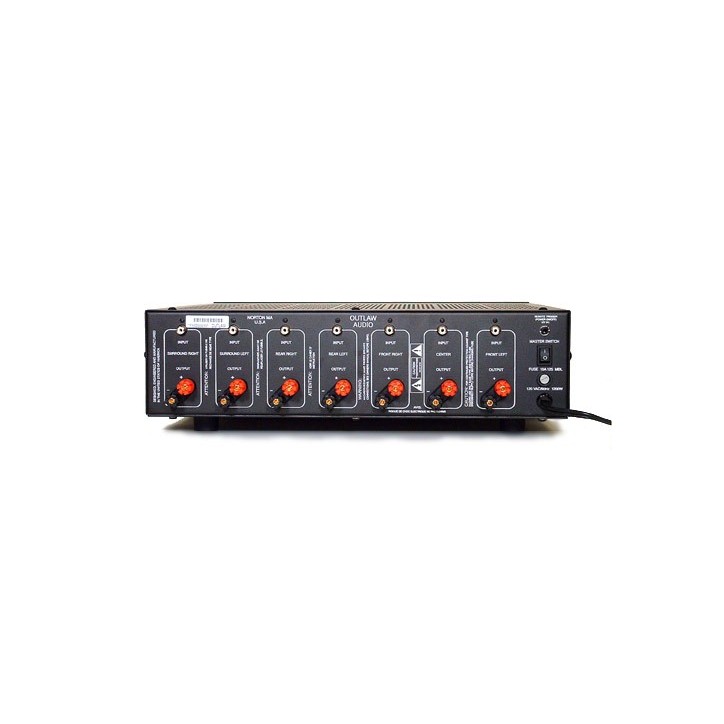

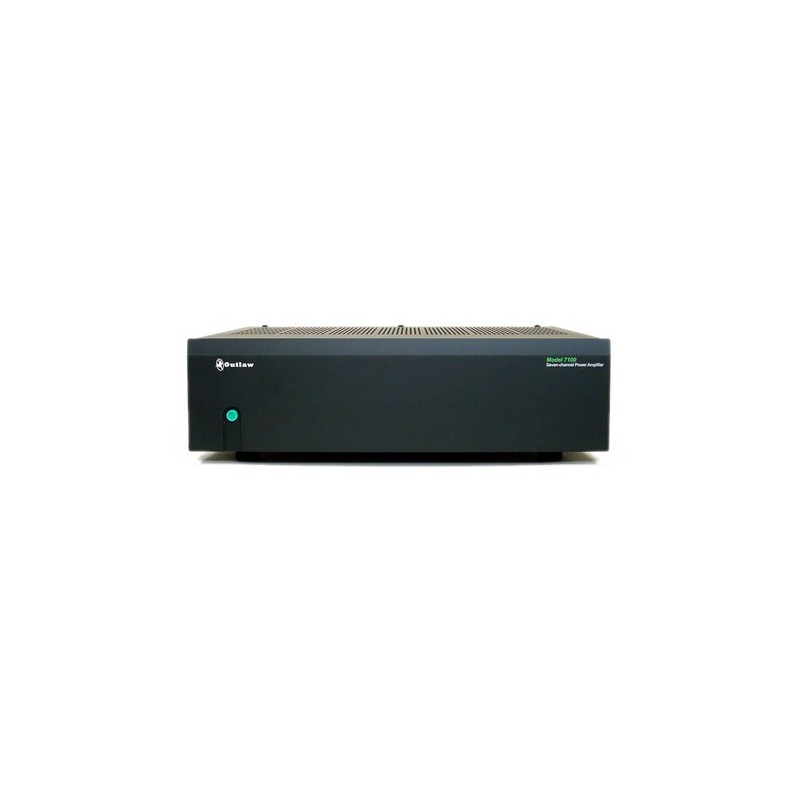

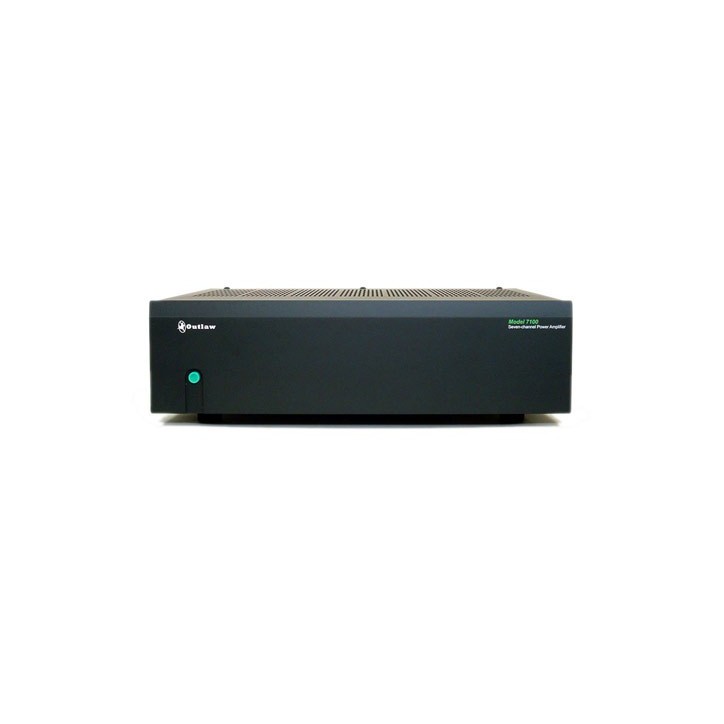

Model 7100 7-Channel Power Amplifier: Discontinued
$899.00
A moderate price never had such a reward. The Model 7100 delivers 7 channels at 100 Watts each, allowing playback of the most recent sound formats without breaking the bank. The Model 7100 is based on the same system architecture and topology as our Model 755 and 770 amplifiers.
Free shippingOn orders over $500 (lower 48 states)
30-day money-back trial
Ships within 5 business daysVia ground shipping
This product is discontinued. This page is kept as an archive for owners, with the original product information, specifications and manual. For current models, see Power Amplifiers.
Overview
A moderate price never had such a reward. The Model 7100 delivers 7 channels at 100 Watts each, allowing playback of the most recent sound formats without breaking the bank. The Model 7100 is based on the same system architecture and topology as our Model 755 and 770 amplifiers. The power stages are virtually the same and the sound is everything you have come to expect from Outlaw. The Model 7100 is built in the USA to our design and specifications. $899
About the Model 7100
Model 7100 7-Channel Amplifier
Alright, we’ll admit it. Not everyone needs 200 watts of power per channel. Smaller rooms, efficient speakers and problematic neighbors (or spouses) sometimes dictate the need for smaller amps. The Model 7100 is the ultimate elegant solution. Seven, 100-watt amps in one chassis provide significant power and flexibility at an unheard of $899. That’s just over a buck and a quarter a watt! Built on the same platform as its big brother the Model 770, the 7100’s 7-channel configuration makes it perfect for the newest Dolby Digital EX and DTS-ES applications. So, if you have neighbors (or a spouse) who likes to complain, but you still want the dynamic range, detail, and soundstage of high performance separates, the Model 7100 is for you. We sincerely believe that the 7100 represents very best value anywhere in a multi-channel amplifier.
Specifications
| Power Output | 7 x 100 watts @ 8 ohms, 20 - 20kHz, 0.05% THD, All Channels Driven 7 x 165 watts @ 4 ohms, 20 - 20kHz, 0.05% THD, All Channels Driven |
|---|---|
| Signal to Noise | 119dB "A" weighted |
| Frequency Response | 20Hz. -20kHz. +/- 0.1 dB at rated output |
| Total Harmonic Distortion | < 0.05% at rated output, all frequencies, 0.01% at 1 kHz. |
| Intermodulation Distortion | < 0.05% at rated output. |
| Power Bandwidth | 5Hz - >100 kHz +0/-3 dB |
| Damping Factor | > 400 from 10 Hz to 400 Hz |
| Crosstalk | > -90 dB from 20 Hz to 20Khz |
| Gain | Voltage gain of 28 |
| Slew Rate | 50v/Microsecond |
| Input Impedance | Nominal 50k ohms |
| Input Sensitivity | 1.00 Volts for Full Rated Output |
| Remote Trigger Voltage | 3 - 32 Volts DC at 5 milliamperes or greater |
| Dimensions | (HxWxD): 5" with feet x 17.2" x 16.2" |
| Weight | 51 lbs |
| Power Requirements | 115VAC, +/- 3%, 50Hz - 60 Hz. 1200 watts, maximum |
Photos
Manuals
Reviews
- AudioReview.com (Customer reviews of the Model 7100)
- Wide Screen Review
- Secrets of Home Theater and High-Fidelity (Avi Greengart reviews the Model 7100)
Specific References
No customer reviews for the moment.
