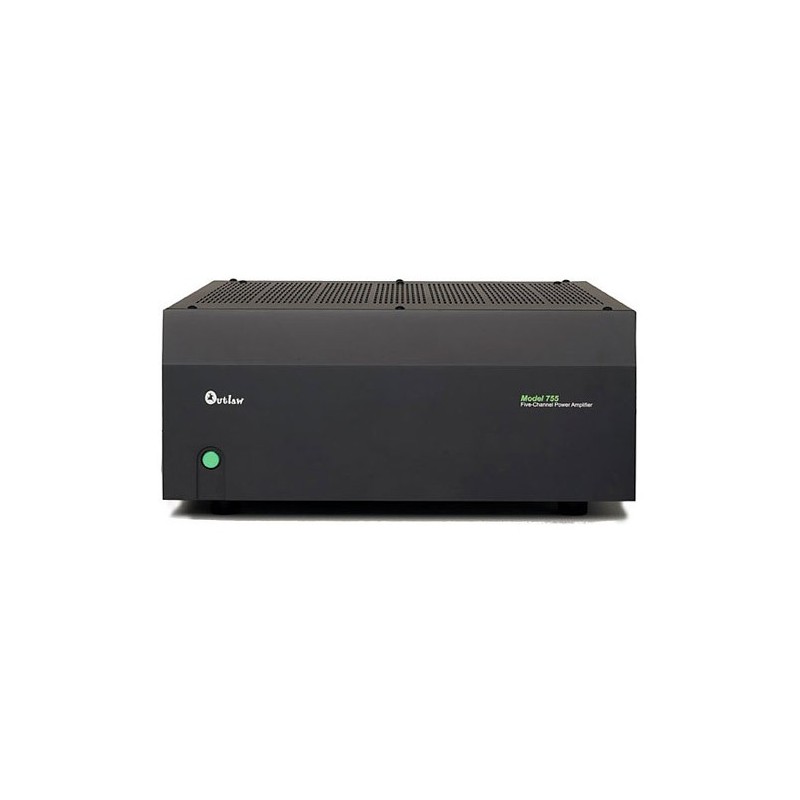

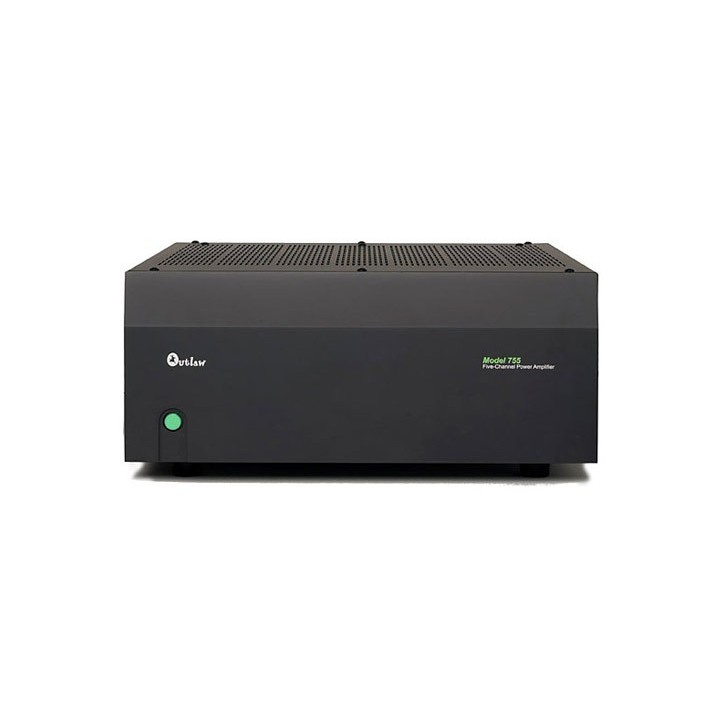

Model 755 5-Channel Power Amplifier: Discontinued
The Model 755 is our high-power five channel amplifier, perfect for most theater applications. A worthy successor to the award winning Model 750, it features dual-torroid transformers for space saving design.
Free shippingOn orders over $500 (lower 48 states)
30-day money-back trial
Ships within 5 business daysVia ground shipping
This product is discontinued. This page is kept as an archive for owners, with the original product information, specifications and manual. For current models, see Power Amplifiers.
Overview
The Model 755 is our high-power five channel amplifier, perfect for most theater applications. A worthy successor to the award winning Model 750, it features dual-torroid transformers for space saving design.
About the Model 755
Model 755 5-Channel Amplifier
In the tradition of our award winning Model 750 five channel power amp we have released the Models 770 ($1799-7 channel amp) and 755 ($1299-5channel amp).

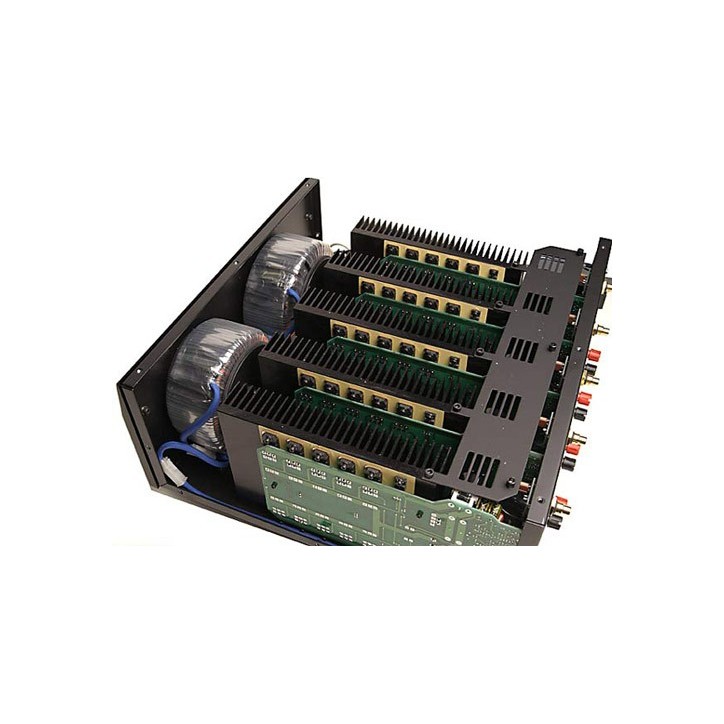

Power --- Gobs of it: pure and simple. These days the very best home theaters use dedicated power amps. They provide more power on demand to ensure that the F-18 Hornet in the latest action blockbuster sounds like a heavily armed fighter than a paper airplane. Our Model 770 and 755 define what true high power amps really are. At 200 watts per channel, two massive Torroidal transformers and 22,600uf of capacitance per module these amps are unrivaled. The 770/755 will drive virtually any speaker in existence to reference levels, and they will do so with the authority of an F-18 and the finesse of a concert violinist. If you are really serious about your home theater don’t settle for “receiver” power, get yourself a dolly and wheel one of these amps into your system. Be prepared to hear soundtracks the way they were intended to be experienced.
Specifications
| Power output | 200 watts RMS x 5 (all channels driven simultaneously into 8 ohms from 20 Hz to 20 kHz with less than 0.05% total harmonic distortion). 300 watts RMS x 5 @ 4 ohms |
|---|---|
| Signal to Noise | 119dB "A" weighted |
| Power Bandwidth | 5 Hz - over 100 kHz (+0/-3 dB) |
| Damping factor | 850 (10 Hz - 400 Hz) |
| Input sensitivity/Impedance | 1.43 volts for full output/28 k ohms. |
| Crosstalk | Greater than -90 dB from 20 Hz to 20 KHz |
| Gain | Voltage gain of 28 dB |
| Slew rate | 50 Volts/microsecond |
| Remote Trigger voltage | 3 - 32 volts DC |
| Power requirements | 115 V 50-60 Hz |
| Power consumption | 1,800 watts (maximum) |
| Dimensions (W x H x D) | 17.2 x 7.75 with feet x 18 (inches) |
| Weight | 78 (lbs) |
Photos
Manuals
Reviews
- AudioReview.com (Customer reviews of the Model 755)
- Home Theater Sound (Anthony Di Marco Reviews the Model 755)
