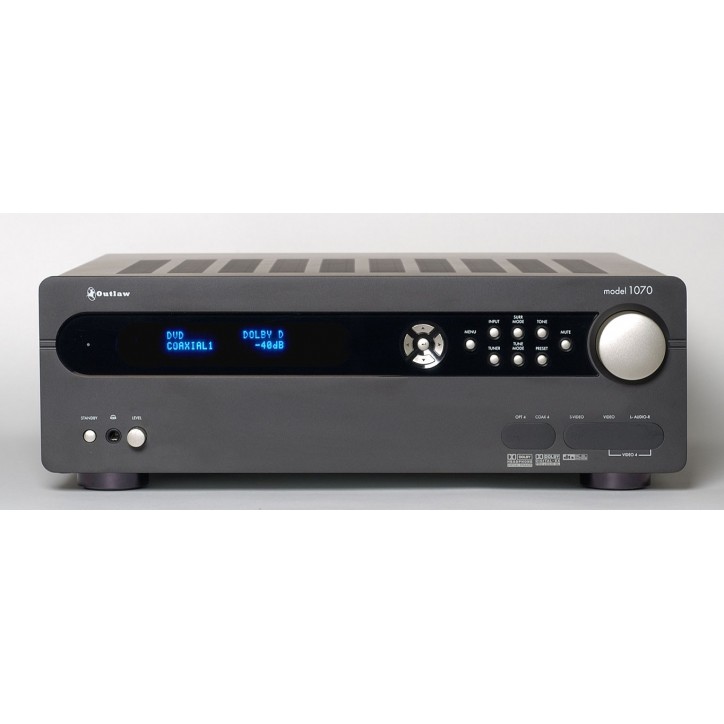

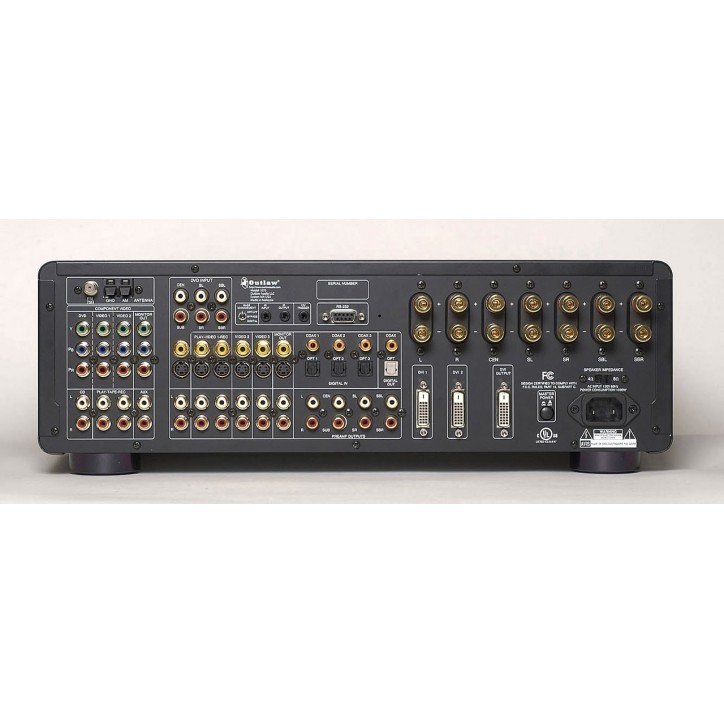

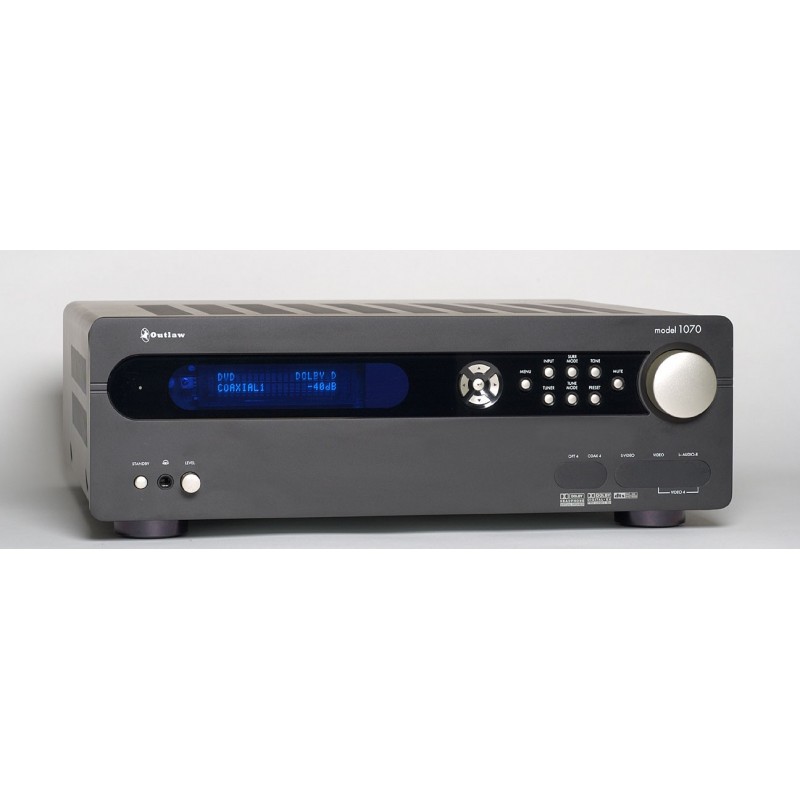

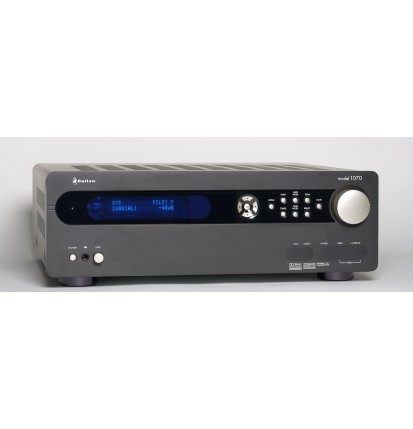

Model 1070 7.1 Receiver: Discontinued

Review (0)

Quantity :

Free shippingOn orders over $500 (lower 48 states)
30-day money-back trial
Ships within 5 business daysVia ground shipping

This product is discontinued. This page is kept as an archive for owners, with the original product information, specifications and manual. For current models, see Stereo Receivers.

Overview

The Model 1070 is a fully featured 7.1 receiver that includes a wide range of state-of-the-art features along with the superb 'all channels driven,' high performance audio quality made famous by our first receiver, the award-winning Model 1050.
• DTS-ES Discrete and Matrix, DTS-96/24, DTS NEO-6
• Dolby Digital EX, Dolby Pro Logic IIx fully adjustable, Dolby Virtual Speaker, Dolby Headphone
• 192 kHz 24-bit DAC's for all channels
• Analog Bypass mode for all inputs
• Quadruple Crossover Control (Separate settings for Front L/R, Center, Surround L/R, Surround Back L/R)
• Upgradeable via RS-232
• Transcoding between composite, S-Video and Component Video Inputs
• 4 Optical and 4 Coaxial Digital Inputs
• Optical and Coaxial Digital Output
• Lip Synch Delay
• On Screen Display (via composite, S-Video and Component)
• 32-Bit CS-49400 Crystal Processor
• 7.1 channel direct input with full digital bass management, analog bass management and pure by-pass
• 2-channel subwoofer offset
• 7.1 RCA pre-amp outputs
• High performance tuner
• Direct access station tuning via remote control
• 30 Station Presets
• IR control with 1 inputs and 1 output
• 2 Video Record Out Selectors
• 12-Volt Trigger
• 3 HD capable Component Video Inputs
• 2 DVI Inputs 1 DVI Output
• 5 Audio/Video Inputs
• 4 Audio Inputs
• Channel Level Memory
• Sleep Timer
• Aluminum Front Panel
• Dimensions: (HxWxD): 5.9 " with feet x 17.2" x 15.5"
• Weight: 40 lbs.

About the Model 1070

The Model 1050 redefined the A/V industry by combining cutting edge features, rock solid build quality, a robust amplifier section and Internet-Direct pricing. While end users and professional reviewers alike showered us with awards and accolades, our competitors and critics declared we had a "one hit wonder" in an already competitive receiver category; and they were right. That is, until we released its replacement, the Model 1070.

The key to a great A/V receiver is delivering fabulous sound and picture with a thoughtful balance of useful features and intuitive operation. Poised once again to redefine the market, the Model 1070 delivers on this hard to achieve standard.

Incorporating an easy to read two-line display with full menu control and OSD over all analog video connections the 1070 is a breeze to configure. The addition of DVI (Digital Video Interface) switching ensures you'll be able to take advantage of your video sources' very best outputs despite the limited connectivity on most displays.

Of course, video performance is only part of the equation. Audio is the better half of an A/V receiver and the 1070 delivers a true 7x 65 watts per channel. What does that mean? Unlike most mass-market manufacturers, the Model 1070 is rated full bandwidth (20Hz to 20kHz), all channels driven, with < .08%THD. Put another way, the 1070 is more powerful than most so-called 100-watt receivers!

If it’s useful features you're after, you've come to the right place. The 1070 provides the most flexible bass management EVER offered in a 7.1 channel receiver. This ensures that no matter what speakers and subwoofer you use and no matter what sources you like to listen to, your system can be dialed in just the way you like it. The Model 1070 also offers an RS-232 port for software upgrades, lip-sync delay to correct the "Godzilla Effect" (when the dialog timing doesn't match up with the actor's mouth movements), 2-channel subwoofer offset and much, much more.

Powerful, yet compact in size, loaded with features and delivering astounding audio performance, the Model 1070 A/V receiver is the worthy successor to our groundbreaking Model 1050.

Specifications

Amplifier Section
Output Power (FTC): 65 watts per channel, 8 ohms, 20 Hz - 20kHz,<0.08%THD, all channels driven
80 watts per channel, 6 ohms, 1 kHz, <0.08% THD
Analog Section
Input Impedance 26Kohms
Output Impedance (Main-RCA)<600Ohms
Pre Out 1V
Maximum Output 6.0V
Volume Range (Main) -70dB to +10.0dB (.5dB resolution)
Bass Management
High-Pass Slope Crossover Frequency
(Small Speaker Setting) (Adjustable 40/60/80/100/120/150Hz)
12 dB/octave (2nd order)
Low-Pass Slope (Subwoofer) 24 dB/octave (4th order), 40-150Hz as above
Tone Control
Bass Center Frequency/Range 30Hz ± 6dB
Treble Center Frequency/Range 10KHz ± 6db
Frequency Response
Line 10Hz to 100kHz ± 1dB
S/N Ratio (IHF-A) 100dB
IMD (CCIF at 15kHz & 1 kHz) 0.03%
FM Tuner Section
Sensitivity
IHF 10dBu typ.
50dB S/N 13dBu typ.
S/N Ratio
Mono 70dB
Stereo 67dB
Distortion
Mono 0.2%
Stereo 0.3%
Stereo Separation 40dB typ.
Adjacent Channel Selectivity 70dB +/- 400kHz
IF Rejection Ratio 120dB
Frequency Response 20 Hz to 15 kHz ± 1.5dB
AM Tuner Section
Sensitivity (20dB S/N) 200uV
S/N 50dB
Selectivity 25dB
Distortion 0.7%
Video Section
(NTSC Format)
Bandwidth
Composite & S-Video 6 MHz –3dB
Component >100MHz
Input Sensitivity @ 75 ohms;
Composite & S-Video 1.0Vp-p
Component R-Y Signal 1.0Vp-p
Component B-Y Signal 1.0Vp-p
Component Y Signal 1.0Vp-p
Digital Audio
All digital audio inputs and outputs are to S/PDIF electrical (75 ohms , 0.5Vp-p),
S/PDIF optical (Toslink), or AES / EBU (110 ohms , 5Vp-p) standards as appropriate.
Processor CS49400
General
Supply Voltage 120V, 60Hz only
Power Consumption
Standby Power Off : 1.9W
Standby Power On : 37W
7 CH Load @ 65W Output Power : 855W
Trigger Output Sequential Delay 50 mA @ 12 VDC
Dimensions
(HxWxD) 5.9”x17.2”x15.5”
Weight 40 lbs.
