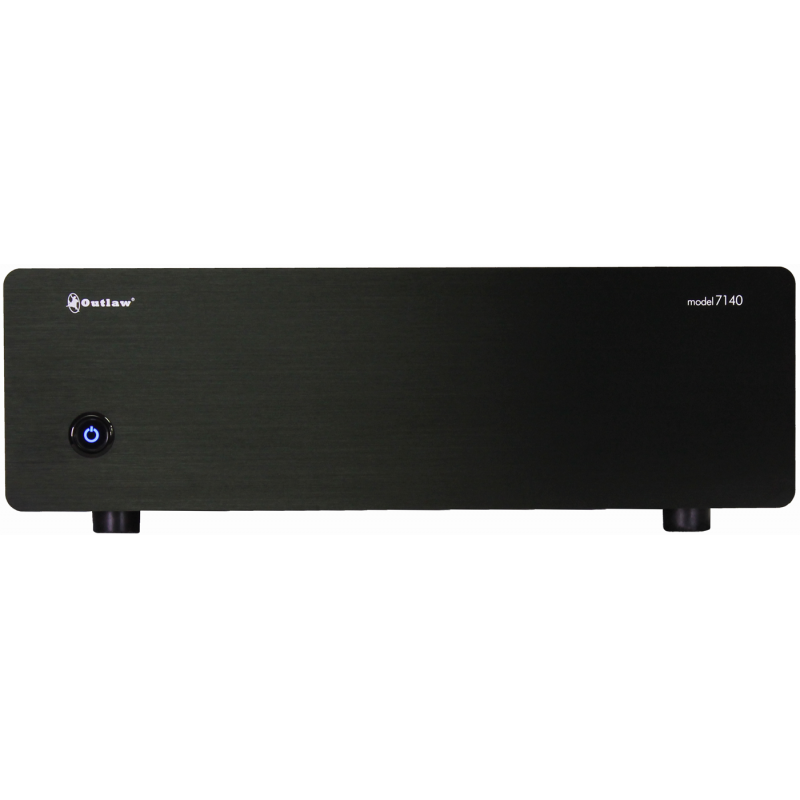

Model 7140 7-Channel Power Amplifier: Discontinued
Tried and true Class AB amplification has been at the heart of every Outlaw multi-channel amplifier for almost 20 years. With the Model 7140, we've managed to increase the power, improve the performance, and provide even greater reliability, all in the same chassis size as our previous Model 7125.
Free shippingOn orders over $500 (lower 48 states)
30-day money-back trial
Ships within 5 business daysVia ground shipping
This product is discontinued. This page is kept as an archive for owners, with the original product information, specifications and manual. For current models, see Power Amplifiers.
Overview
Tried and true Class AB amplification has been at the heart of every Outlaw multi-channel amplifier for almost 20 years. With the Model 7140, we've managed to increase the power, improve the performance, and provide even greater reliability, all in the same chassis size as our previous Model 7125. With RCAs and XLRs (utilizing a balanced input stage), this amplifier offers high performance at an affordable price.
About the Model 7140
Model 7140 7-Channel Amplifier
INTRODUCING THE NEW MODEL 7140
Our goal for this amplifier: increased power, improved performance, greater reliability, and an enhanced user experience.
POWER
The new 7140 delivers 7 x140 watts per channel into 8 ohms (all-channels driven), and 7 x 225 watts into 4 ohms.
Connectivity

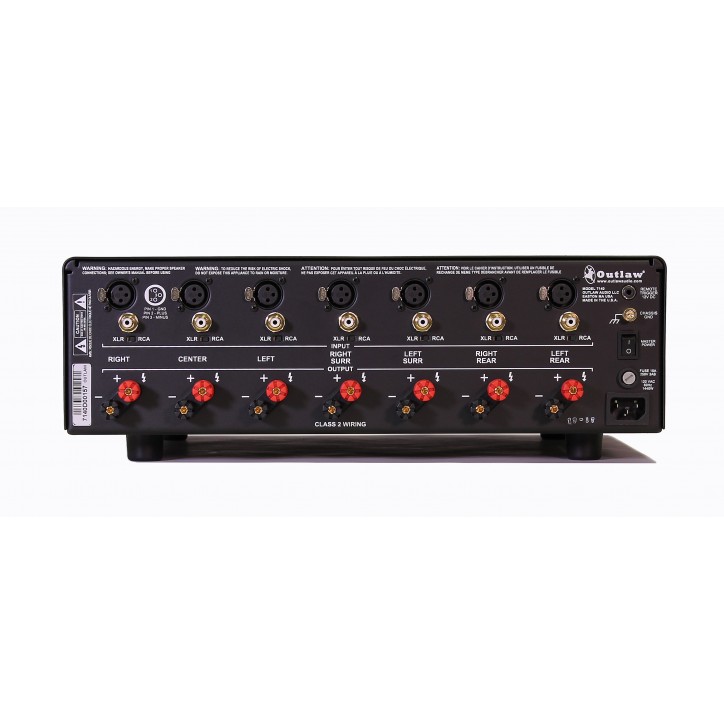

In addition to RCA connectors, the 7140 also offers XLR inputs utilizing a special IC offered by THAT Corporation, that allows superb performance for processors utilizing XLR outputs.
NEW ADVANCED TRANSFORMER

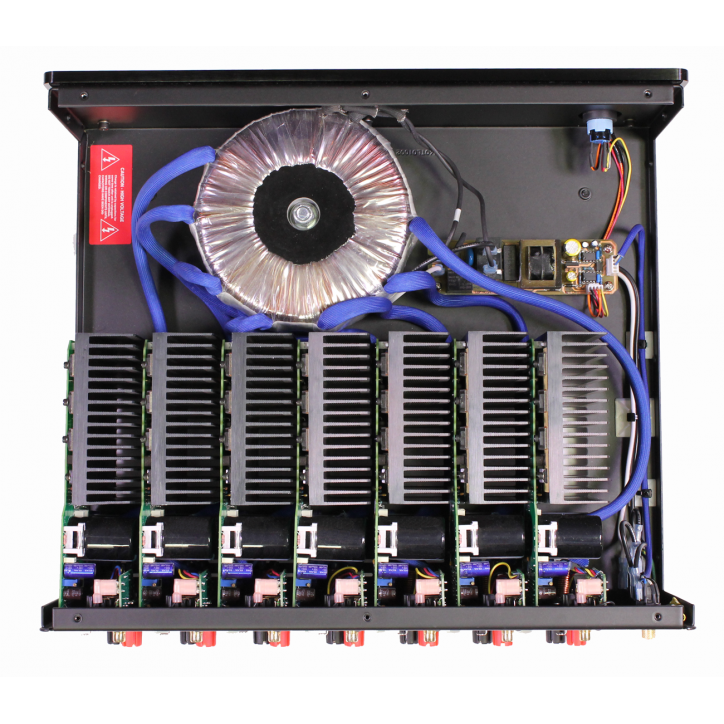

All of this performance and connectivity has been engineered into a chassis which is the same size as the original 7125. To increase the power, and maintain the same chassis size, we needed a new power supply that would deliver significantly more output voltage and current. To solve this, we chose a recently developed Class F transformer that utilizes professional grade insulation and has a greater thermal efficiency.
A NEW TURN-ON SYSTEM
Traditionally, we have used thermistors to delay amplifier turn-on and reduce any side-effects caused by an in-rush of current. Since we are now dealing with connections for both RCA and the XLRs connectors (controlled by the THAT circuitry), we improved upon this system to ensure there will be no audible pops, thumps or other side effects until the high powered signal has fully settled in.
Totally New amplifier modules
We are using new output devices with higher voltage and current for increased power and reduced distortion. Each of the amplifier modules has three pairs of newly designed output devices. This use of perfectly matched devices (the pairs) delivers greatly improved DC offest. The result: lower distortion and smoother operation.
In summary, the new 7140 represents our best thinking in an affordable high-performance Class AB amplifier.
Specifications
| Power Output | 140 watts RMS x 7 All Channels Driven simultaneously into 8 ohms from 20Hz to 20 kHz with @ 0.05% THD. 225 watts RMS into 4 ohms @ 0.05% THD |
|---|---|
| Signal to Noise | >120dB "A" weighted |
| Frequency Response | 20Hz. -20kHz. +/- 0.1 dB at rated output |
| Intermodulation Distortion | < 0.05% at rated output. |
| Power Bandwidth | 5 Hz - >125kHz +0/-3 dB |
| Damping Factor | Greater than 400 from 10 Hz to 400 Hz |
| Crosstalk | Greater than -90 dB from 20 Hz to 20Khz |
| Gain | Voltage gain of 29 dB |
| Slew Rate | 50v/uSec |
| Input Impedance | Nominal 50k ohms |
| Input Sensitivity | 1.2 Volts for Full Rated Output |
| Remote Trigger Voltage | 3 - 32 Volts DC at 5 milliamperes or greater |
| Dimensions | (HxWxD): 6” including feet x 17.25” x 16” |
| Weight | 53.55 lbs |
| Power Requirements | 120VAC, +/- 3%, 50Hz - 60Hz 1440 watts, maximum |
