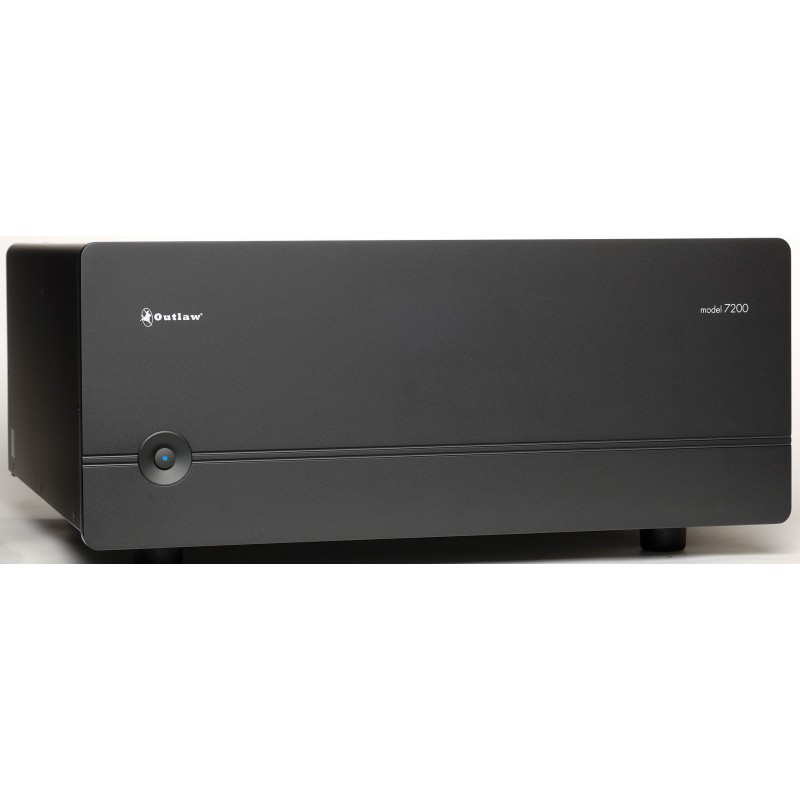

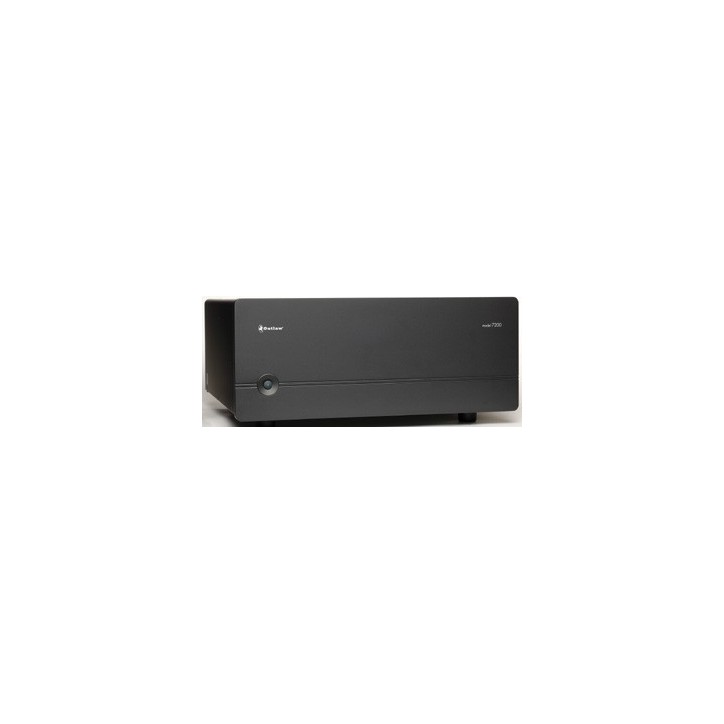

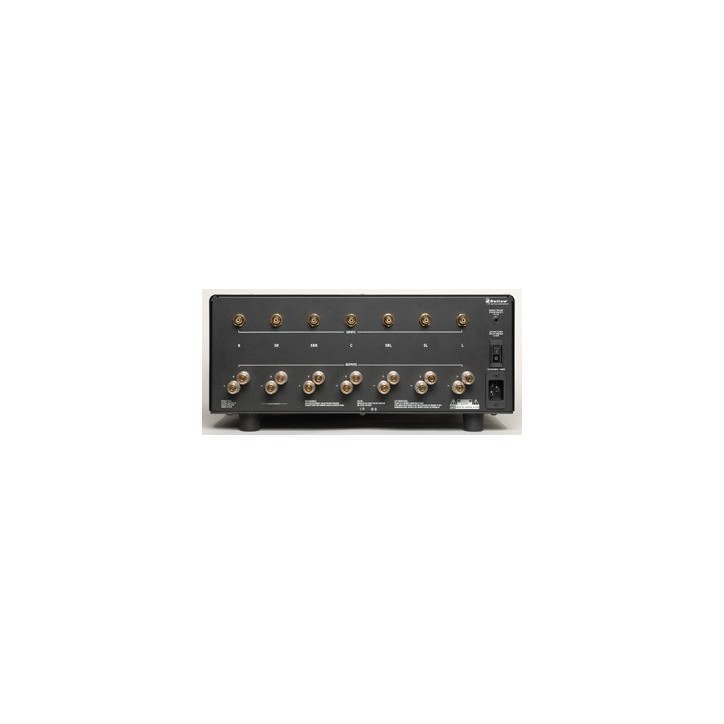

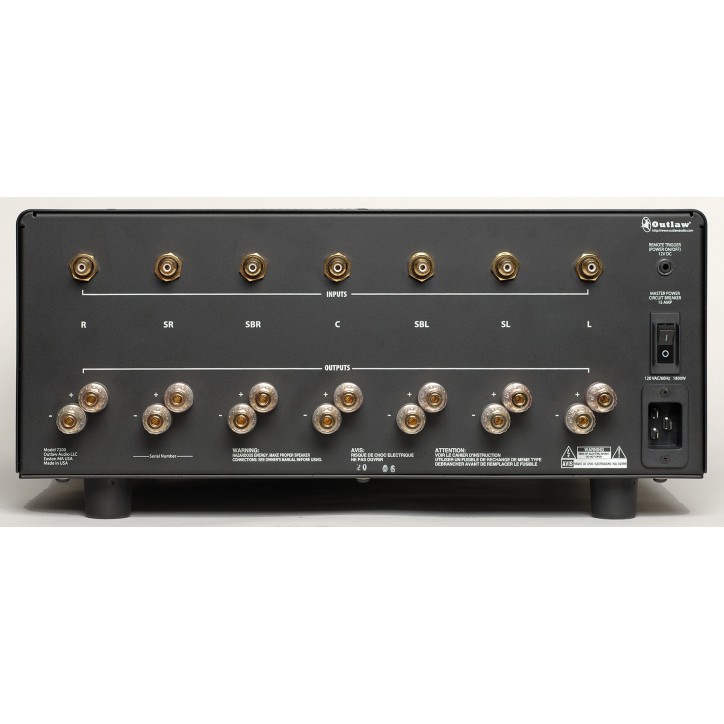

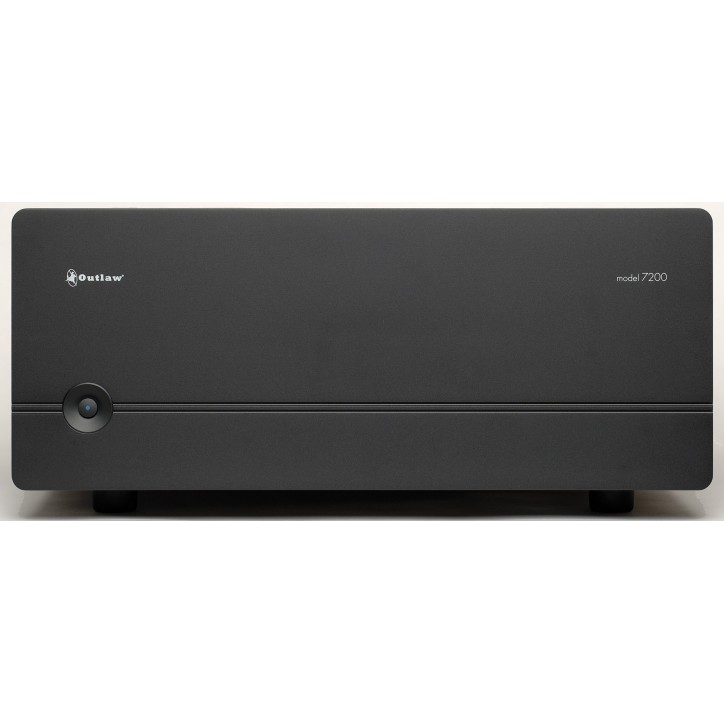

Model 7200 7-Channel Power Amplifier: Discontinued
$1,599.00
Our most powerful single-ended amplifier, the Model 7200 is a true workhorse. Delivering 200 watts per channel, it's capable of driving the most inefficient speakers without losing even a hint of finesse on more "subtle" recordings.
Free shippingOn orders over $500 (lower 48 states)
30-day money-back trial
Ships within 5 business daysVia ground shipping
This product is discontinued. This page is kept as an archive for owners, with the original product information, specifications and manual. For current models, see Power Amplifiers.
Overview
Our most powerful single-ended amplifier, the Model 7200 is a true workhorse. Delivering 200 watts per channel, it's capable of driving the most inefficient speakers without losing even a hint of finesse on more "subtle" recordings.
Specifications
| Power output | 200 watts RMS x 7 (all channels driven simultaneously into 8 ohms from 20 Hz to 20 kHz with less than 0.05% total harmonic distortion). 300 watts RMS x 7 @ 4 ohms |
|---|---|
| Signal to Noise | >119dB below rated FTCfull bandwidth power |
| Power Bandwidth | 5 Hz - over 100 kHz (+0/-3 dB) |
| Crosstalk | Greater than -100 dB from 20 Hz to 20 KHz |
| Intermodulation Distortion | Less than .03% from 250mV to full rated FTC power |
| Voltage gain | RCA 28dB. |
| Slew rate | 50 Volts/microsecond |
| Remote Trigger voltage | 3 - 32 volts DC |
| Power requirements | 115 V 50-60 Hz |
| Power consumption | 1,800 watts (maximum) |
| Dimensions (W x H x D) | 17.2 x 7.75 with feet x 18 (inches) |
| Weight | 90 (lbs) |
Photos
Manuals
Reviews
- Home Theater Review (October 2008 Web Review)
- Audio/Video Revolution.com (Web review of the Model 7200)
Specific References
No customer reviews for the moment.
