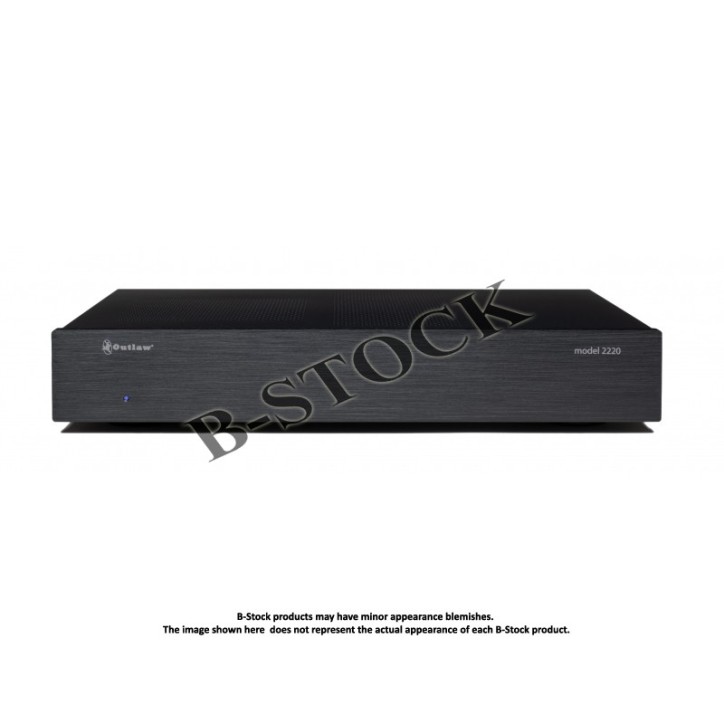

B-Stock: Model 2220

B-stock units are customer returns or factory-refurbished units that have been opened for any reason. They carry a full warranty and thirty-day money back trial. While these units are 100% fully operational they are not guaranteed to be blemish free. If you are not comfortable with blemishes, please consider new product.

Mono? Mini? Micro? Magnificent? Whatever that M is, this is one UNREAL little single-channel amp. 200 Watts (conservatively!) into a 3-inch chassis with balanced input stage to offer Common Mode Rejection!

MANUAL

button_magnify.gifSee Front Panel Huge button_magnify.gifSee Rear Panel Huge
$329.00

We've always designed our monoblock amplifiers with two things in mind: performance and flexibility. These single channel amplifiers may be small in height, but they pack a big punch! The Model 2220 is a 200-watt amplifier. You simply buy one for each speaker. Like our other 200 watt amplifiers, this amp will drive virtually any 4 ohm nominal load (or above) that you throw at it.

You want to know how a monoblock provides more flexibility than a multi-channel amplifier? Well, they run cooler and are the only amplifier we sell that you can stack! At just under 1.75RU, placement is as easy as it comes. Servicing, well that's easy too; send just the single monoblock to Outlaw and keep running all your other channels!

In terms of performance, this monoblock provides neutral, accurate playback. The advanced input stage provides CMR and is not just a balanced connector!  Top that off with a large pancake style torroidal transformer and the Model 2220 delivers a cool yet potent performance. The Model 2220: small, sleek and powerful-need we say more?

Data sheet

Crosstalk
N/A
Frequency Response
20Hz -20kHz +/- 0.6 dB at rated output
Input Impedance
XLR: 18k; RCA: Less than 10k
Input Sensitivity
1.6V 8ohm load/ 1.4V 4 ohm load
Intermodulation Distortion
Less than .004%
Signal to Noise
112dB A-Weighted
Rated Amplifier Power
300 Watts RMS into a 4 ohm load from 20Hz - 20kHz with .05% total harmonic distortion (A-Weighted).
Rated Amplifier Power
200 Watts RMS into an 8 ohm load from 20Hz - 20kHz with .05% total harmonic distortion (A-Weighted).
